Product overview

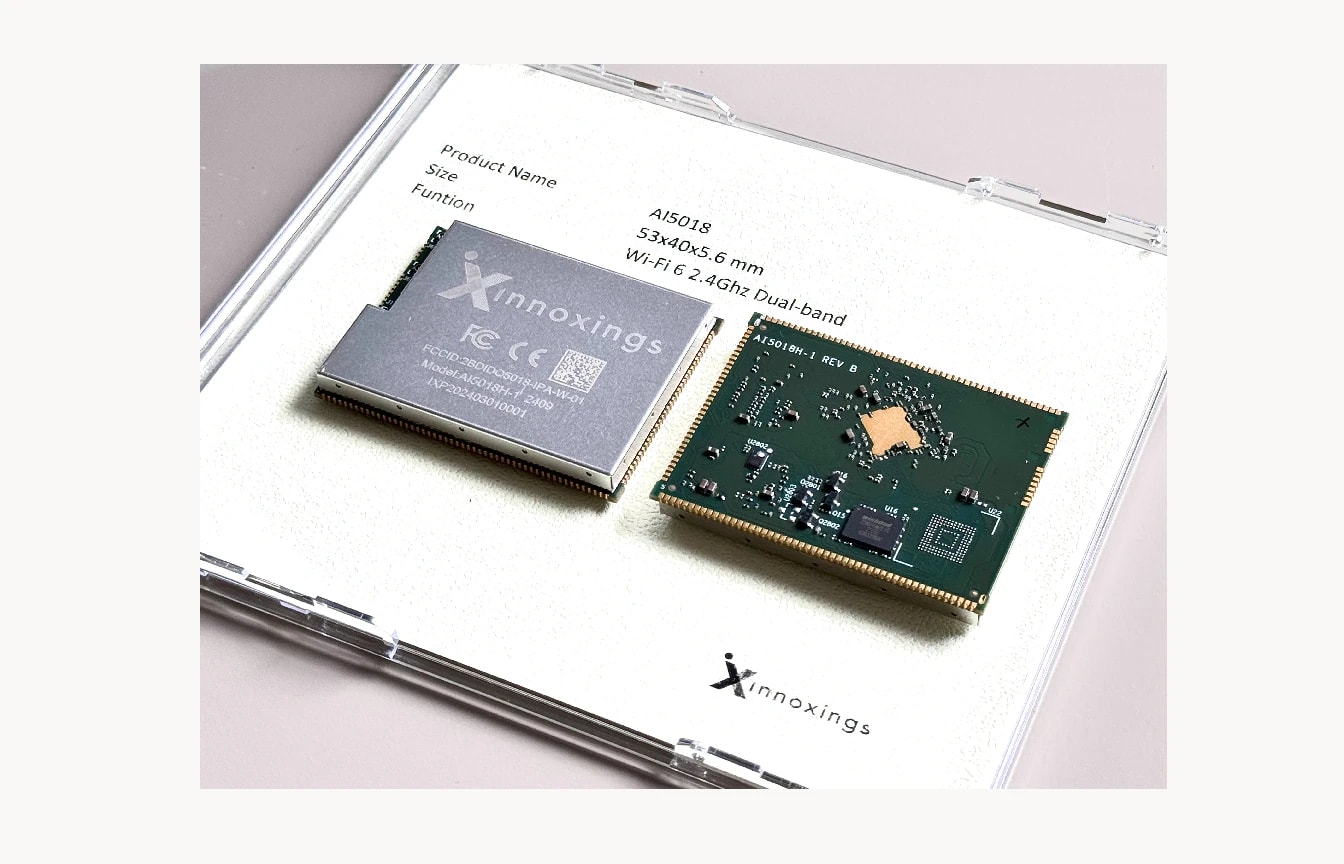

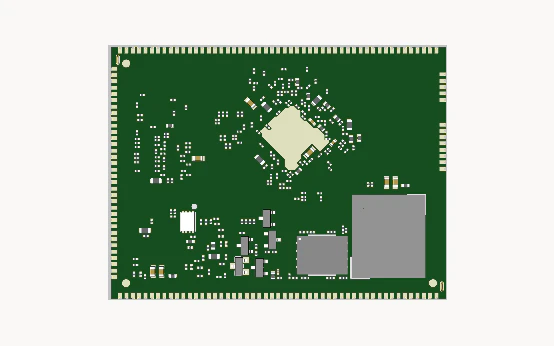

Innoxings AI5018H
Wi-Fi 6 System-on-Module designed for high-performance embedded networking and wireless communication applications.
Description
Innoxings AI5018H-1 is an IPQ 5018 SoC based Wi-Fi 6 System-on-Module (SOM). It is a compact, integrated module that combines all the components required for building a complete system into a single form factor. AI5018H-1 is designed to simplify the process of designing and manufacturing embedded devices and wireless communication systems. With its high-performance processor, memory, storage, and networking capabilities, the AI5018H-1 SOM is well-suited for a wide range of applications, including IoT, networking, and wireless communications. By incorporating all the necessary components into a single module, the AI5018H-1 SOM reduces the time-to-market and overall cost of the product, making it an attractive solution for many different types of embedded systems.
Key features
- Qualcomm IPQ5018 Wi-Fi 6 Platforms
- Integrated System-on-Module Design
- High-Speed Wi-Fi 6 Connectivity
- Optimized for Embedded and IoT Systems
- Reduced Development Time and Cost
Technical specifications
| Parameter | Value |
|---|---|
| Chip set | Qualcomm IPQ5018 main chip with Dual-core A53@1.0 GHz |
| Memory | DDR3 1GB / 16MB NOR Flash (U-boot)/128MB NAND Flash (for system) |
| Storage | 64 GB eMMC + M.2 NVMe (optional) |
| Ethernet | 2.5/1 GbE RJ45, IEEE 802.11 ax |
| Wireless | Wi-Fi 6E |
| Power input | 12V ±10% DC, redundant inputs available |
| Junction Operating temperature | 0 °C to +115 °C (configurable) |
| Architecture | System-on-Module |
| Feature | High throughput networking |

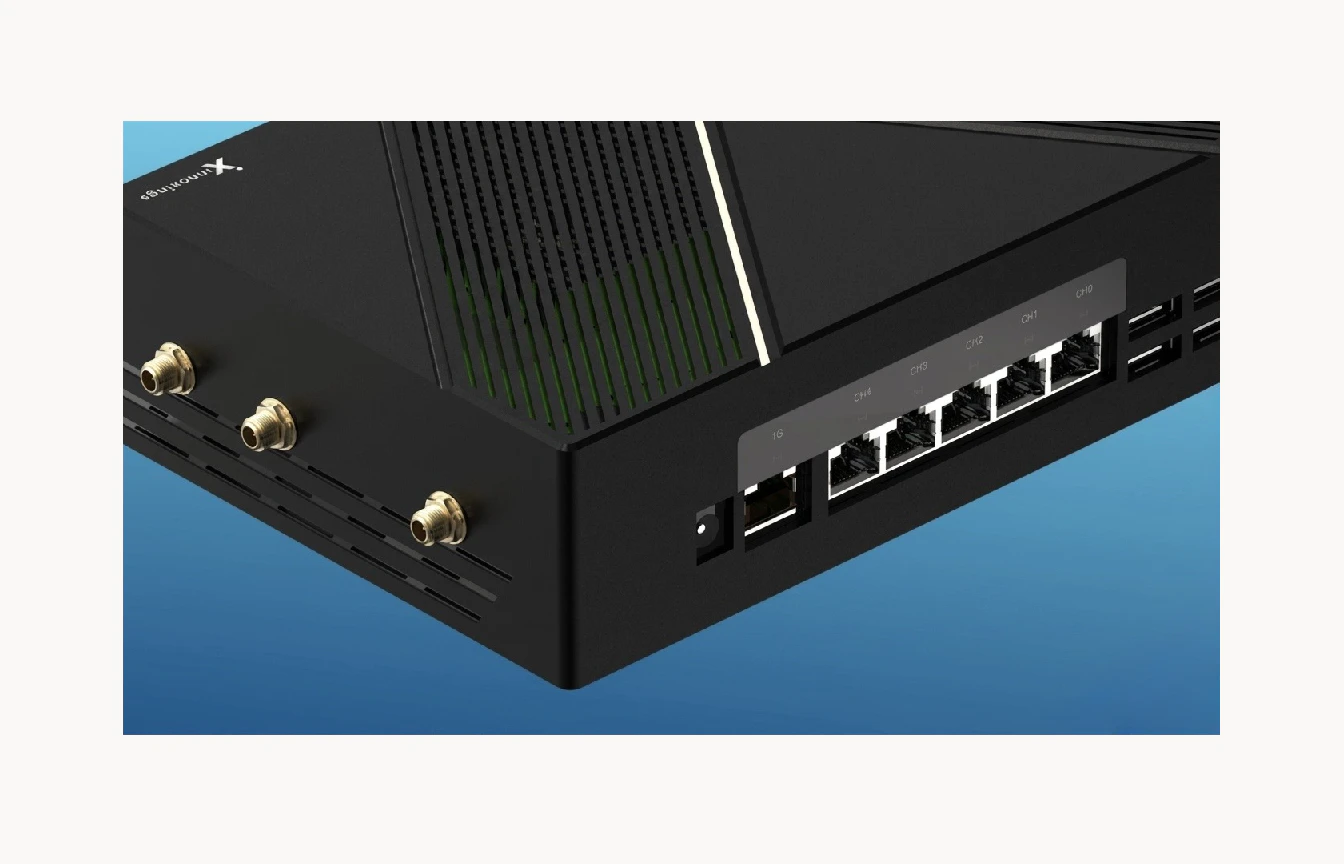

| Application | Router / Gateway / AIoT |
| Dimension | 55mm x 40mm x 65mm (Top 54mm + Buttom 11mm) |
| Certifications | CE / FCC Regulatory Report Done |
Specifications represent representative ODM configurations. Final values are confirmed during technical review and compliance planning.
Application scenarios
Discuss this platform with our team
Share your target BOM, environmental requirements, and certification goals. We will align you with a technical lead and outline the next validation steps.
